PVC Layflat Hose
PVC Layflat Discharge Hose
Polyester braided & PVC coated — built for irrigation and fire fighting
Made with high-strength polyester filament weaving, coated with quality PVC inside and out. Lightweight, high pressure resistant, abrasion resistant, UV resistant. Ideal for agricultural irrigation and drainage. Standard blue (custom colors available); connects directly to petrol, diesel and solar centrifugal pumps via camlock/BSP fittings — proven for farm irrigation and drainage in hot, high-UV climates.
Sub-Types

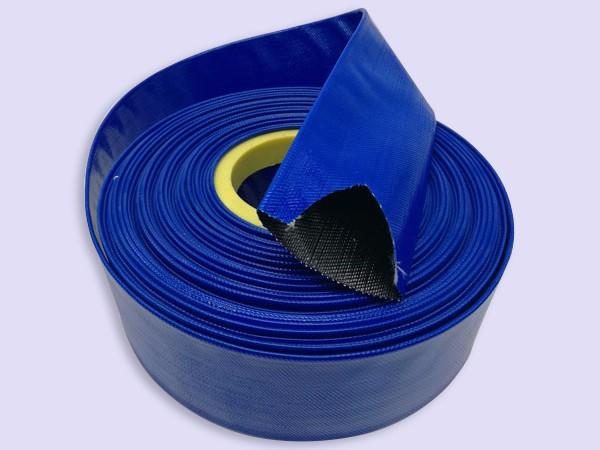

One-Step Extrusion Layflat Hose
The woven jacket and the inner/outer PVC coating are formed in a single process — tight bonding without delamination, lightweight, flexible and cost-effective.
- The workhorse model for farm irrigation and general drainage
- ID / length range: TBD
Specifications
2" / 3" Anti-UV Layflat Hose — Specs & Retail Benchmark
| Size | Duty Rating | Working Pressure | Burst Pressure | Weight | Retail Benchmark (USD/m) |
|---|---|---|---|---|---|
| 2" (51mm) | Light Duty | 4 bar | 12 bar | TBD | ≈ $4.0/m |
| 2" (51mm) | Heavy Duty | 6 bar | 18 bar | TBD | ≈ $4.5/m |
| 3" (76mm) | Light Duty | 4 bar | 12 bar | TBD | ≈ $4.8/m |
| 3" (76mm) | Heavy Duty | 6 bar | 18 bar | TBD | ≈ $5.1/m |
International retail benchmark: approx. $4.0-5.1/m (market reference only, fluctuates by region). Factory-direct pricing is far below retail. OEM branding and custom pressure ratings available. Cells marked TBD are confirmed per order.
Applications
Key Features
One-Piece Woven Jacket
High-strength polyester filament circular-woven jacket, PVC coated inside and out — no delamination, no leaks.
Working pressure up to 18 bar
Burst pressure up to 60 bar. Multiple pressure ratings from light-duty irrigation to high-pressure mine dewatering and fire water supply.
UV & Abrasion Resistant
Formulated for long outdoor service under intense tropical sun — heat, mud and rough ground are no problem.
Rolls Flat, Ships Compact
Lays completely flat when empty — a 100m roll stores and ships in a fraction of rigid pipe volume.
Polyester filament woven jacket + PVC inner/outer coating
Custom colors · camlock / Storz couplings assembly · brand printing
